Anti-reflection film / Anti-finger print device

By combining a sputtered cathode designed by Hitachi Zosen and the vacuum deposition method which we cultivated during the development of organic EL film deposition equipment, we provide equipment used to achieve integrated film formation in the same equipment from the formation of antireflection layer to antifouling layer, thus maximizing production efficiency.

  • *Anti-reflection film (AR film) is a coating intended to prevent the glare and reflection of light.
  • *Anti-finger print (AFP film) is a coating that prevents fingerprints from sticking and makes it easier to wipe off fingerprints. (Generally applied on top of AR film)

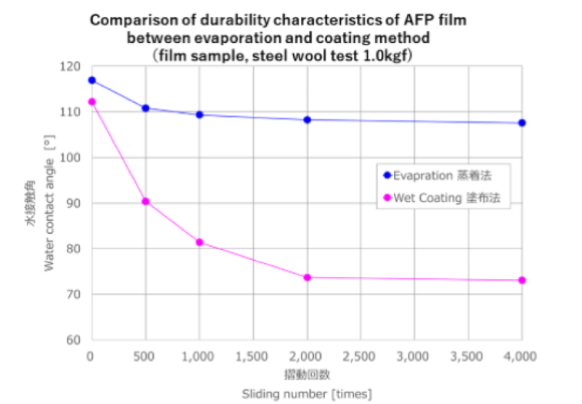

The outermost surface of a display equipped with a touch panel must be resistant to fingerprints and dirt, easy to wipe clean, and resistant to scratches even when operated frequently. Satisfying these requirements was difficult when using the conventional wet coating method. However, the outermost surface (AFP film) formed by our vacuum deposition method maintains anti-finger print performance for a long time while also achieving high sliding durability. Moreover, high productivity is maintained through the roll-to-roll process.

Major products

Example of Hitz AR film

Comparison of application/non-application of AR film on the surface

Example of Hitz AFP film

Comparison of application/non-application of glassy AFP film
  • *Hitachi Zosen can also provide film formation samples. Please use the following inquiry form to contact us.

HARD-F Series

Features

This device continuously deposits AP film and AFP film on a flexible base.

  • Continuous film formation is made possible by providing a differential pressure adjustment mechanism for processes with different operating vacuum degrees of sputtering and vacuum deposition.
  • The AR film uses a proprietarily designed rotary cathode, which enables long-term, high-power film formation.
  • By adopting a proprietarily designed nozzle-type linear source for the AFP film, we achieve both high efficiency of material utilization and highly uniform thickness during film formation.
  • By adopting a proprietarily designed valve mechanism for the AFP film, we realize the following advantages: 1) Maintain a stable vapor deposition rate, 2) Close off during non-evaporation, 3) Replace material during vapor deposition, and 4) Enable vapor deposition of liquid material.
Product name HARD-F Series
Model HF-300 HF-600 HF-1200 HF-1600 HF-2000
Supported film width 300mm 600mm 1,200mm 1,600mm 2,000mm
Film feed rate 0.5 to 20 m/min
Film pretreatment Plasma cleaning
Mounted spatter source Rotary cathode, dual cathode
Mounted evaporation source Nozzle linear source
Sputter/vapor deposition pressure control Differential pressure control

In addition, by attaching ATV mechanisms to the front and back of the device, continuous operation is possible without stopping the device when replacing the raw film, which contributes to improved productivity.

HARD-G Series

Features

This device uses a vertical rotating drum to form an AR film and AFP film on a glass substrate or plastic substrate through an integrated vacuum process.

  • Equipped with a sputter source and evaporation source using the same technology as the HARD-F Series.
  • Supports various types of bases such as long bases and curved bases.
  • Supports film formation in a wide range of wavelengths, thus enabling flexible production for small lots of various products.
  • Also, a load lock mechanism and an automatic base setting device can be installed as options.
Product name HARD-G Series
Model HG-800 HG-1400 HG-1800
Maximum base length (mm)* 800 1,400 1,800
Supported base materials Film, glass
Drum rotation speed ~100rpm
Mounted spatter source Rotary cathode, dual cathode
Number of mounted spatter sources 2 to 4 sources
Post-oxidation unit Yes
Mounted deposition source Nozzle linear source
  • *A base width of 400 mm can be supported by increasing the drum diameter.
